Build a RAG pipeline - answers with citations

The real problem

Employees ask Northwind's helpdesk about leave. A bare model invents numbers. A hand-written flow (search, paste into a prompt, hope) works in a demo, then fails on follow-ups ("and for my second child?"), on questions the policy does not cover, and when someone types a customer's card number into the chat.

A RAG pipeline (retrieval-augmented generation) is that flow made explicit and testable: each stage is visible, has a setting, and reports what it did.

The idea in one minute

Seven stages; only retrieve and generate are required.

Stage	What it does	Key settings
Input guard	Checks the question	checks (pii, injection, blockedTerms), action (flag, mask, block), max length
Rewrite	Turns a follow-up into a standalone search	on/off, profile
Retrieve	Searches knowledge bases	knowledge bases, mode (HYBRID, VECTOR, KEYWORD), top K, threshold
Rerank	A model reorders the best passages	on/off, profile, top N
Context	Packs passages into a size budget	max characters
Generate	Fills the answer prompt and calls the model	prompt (from the library) or inline templates, profile
Output guard	Checks the answer	same checks as the input guard

If nothing relevant is found, the pipeline returns its no-answer text instead of letting the model guess. Like prompts, a pipeline has versions and labels.

Designer path (Studio)

1. Prepare a knowledge base (guide) and, optionally, an answer prompt.

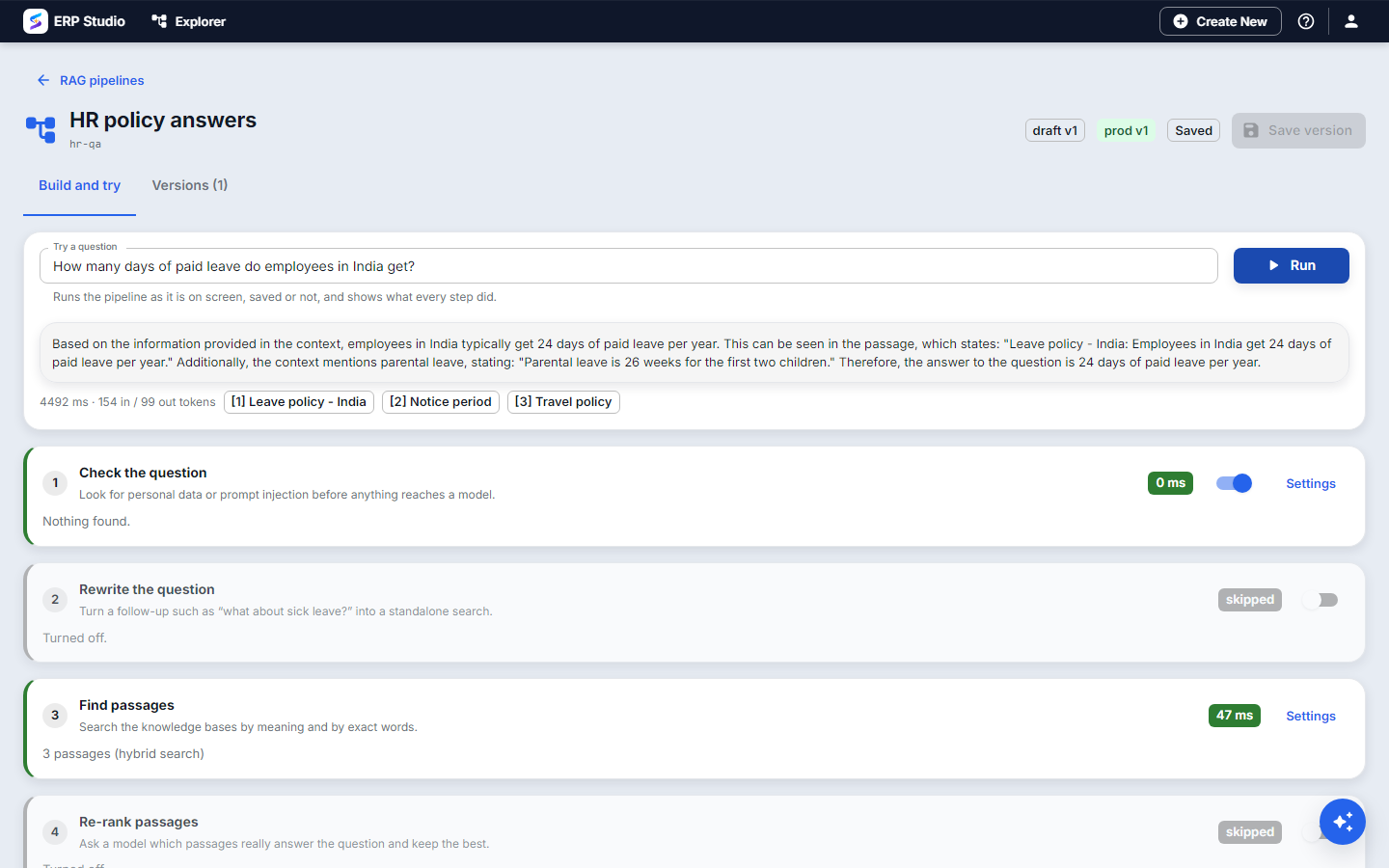

2. Open AI Studio > RAG pipelines > New. Code hr-qa. A starter definition is filled in.
3. On Build and try:
   • Input guard: turn on injection and pii, action mask (so a pasted card number never reaches the model).
   • Rewrite: on, so "and for my second child?" becomes a full question.
   • Retrieve: pick hr-policies, mode Hybrid, top K 5, threshold 0.3.
   • Generate: choose the answer prompt and label, or keep the inline template that says "Answer only from the context. Cite passages as [1], [2]."
   • No-answer text: "I could not find this in the HR policies. Please contact HR."

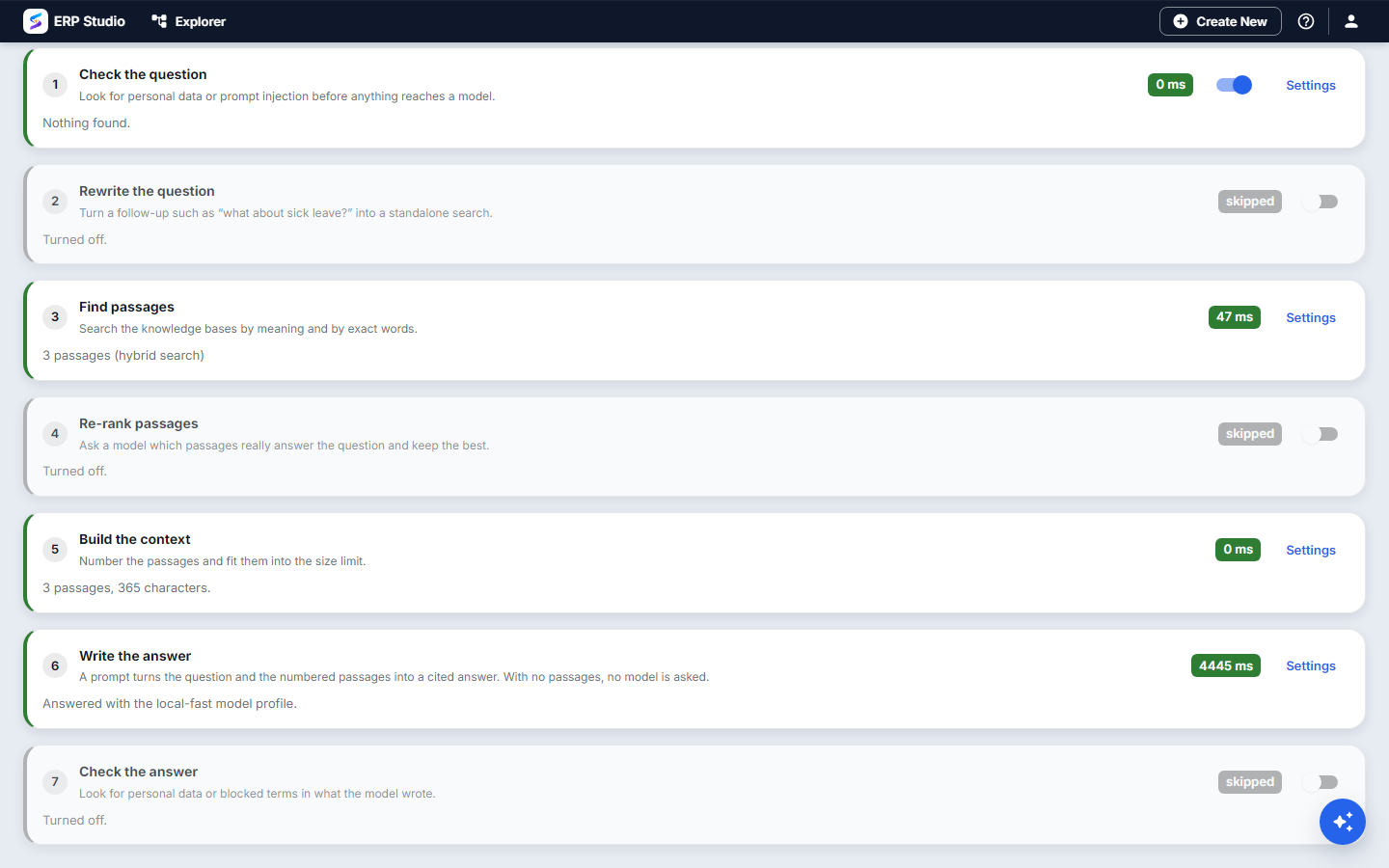

4. Type a real question and press Run. You get the answer, the citations, and a stage report showing what each stage received and returned, its time and any model tokens.
5. Ask something the policy does not cover. The no-answer text must appear, not an invented answer.
6. Save as new version, put the label prod on it.

Developer path

metadata/rag/hr-qa.json:

{
  "pipelineCode": "hr-qa",
  "name": "HR policy answers",
  "definition": {
    "inputGuard": { "enabled": true, "checks": ["injection", "pii"], "action": "mask" },
    "rewrite": { "enabled": true },
    "retrieve": { "knowledgeBases": ["hr-policies"], "mode": "HYBRID", "topK": 5, "threshold": 0.3 },
    "context": { "maxChars": 6000 },
    "generate": { "profileCode": "default" },
    "outputGuard": { "enabled": true, "checks": ["pii"], "action": "flag" },
    "noAnswerText": "I could not find this in the HR policies. Please contact HR."
  },
  "labels": ["prod"]
}

erp schema validate spk-assembly/metadata/rag/hr-qa.json --schema ai-rag-pipeline
erp plugin op ai-rag-run --code hr-qa --label prod --question "How many leave days do I get?"

From code, the pipeline is just a model name; citations come back in a top-level citations field:

from app.ai import ask
result = ask("hr-qa", "How many leave days do I get?")
print(result["answer"], result["citations"])

POST /api/v1/ai/rag/hr-qa/run   { "question": "...", "label": "prod" }   -> answer, citations, stages

Inside a workflow use the ai.rag step (AI workflow nodes).

How to verify

1. The answer quotes the number in the policy and cites [1] with the document title.
2. The stage report shows retrieve returned passages and generate used them.
3. An off-topic question returns the no-answer text and the report shows retrieve found nothing above the threshold.
4. A question containing a card number reaches the model masked (check the guard stage report).

Common mistakes

• Threshold too high. Good passages are dropped and everything says "no answer". Lower it and look at the scores in the retrieval test.
• Threshold too low with a loose prompt. The model is handed noise and answers anyway; keep the "answer only from the context" rule.
• Rerank always on. It adds a model call to every question; turn it on only if the retrieval test shows the right passage is found but ranked low.
• Changing the pipeline without measuring. Score it with an evaluation first.

Not built

Streaming (the answer arrives whole) and a publish gate that blocks a label move on a failing evaluation.

Next

Agents - when the model needs to do things, not just answer.
