Build a knowledge base - documents, embeddings and search

The real problem

Northwind's helpdesk keeps hearing "How many days of parental leave do I get?" The answer is in a 40-page leave policy, but employees will not read it, and a bare model will guess. Worse, the policy differs by country.

The fix is a knowledge base: the policy is cut into passages, each turned into a vector by an embedding model, so the right passages can be found and handed to the model.

The idea in one minute

• A knowledge base (code such as hr-policies) holds documents.
• Each document is split into chunks (size and overlap are settings on the knowledge base).
• Each chunk gets an embedding (a list of numbers that captures meaning) from your embedding profile, stored in the platform's vector store.
• A search can be vector (by meaning), keyword (exact words; useful for codes like "Form 16"), or hybrid (both, combined by rank). Hybrid is the default because it is best on mixed content.
• Any embedding dimension works (384, 768, 1024, 1536). Each search only compares vectors from the same model.

Designer path (Studio)

1. Make sure you have an embedding profile (Models).
2. Open AI Studio > Knowledge bases > New. Code hr-policies, name "HR policies".
3. Open the Settings tab. Set chunk size (about 800 to 1200 characters suits policy text) and overlap (about 10 to 15 percent of that). Use chunk preview to paste a paragraph and see exactly where it will be cut. Choose the default search mode and top K.

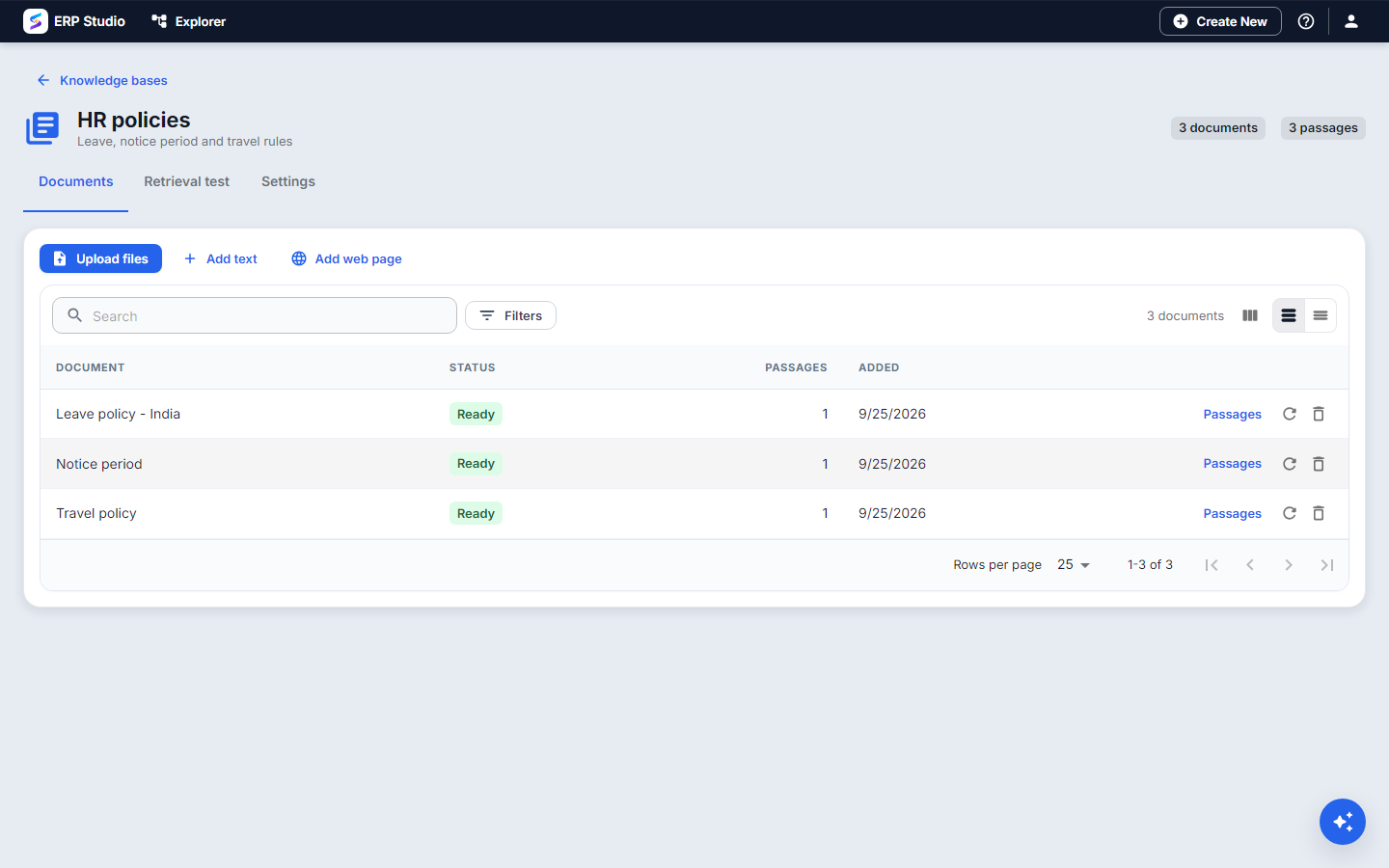

4. On Documents, choose Add text, Upload a file (plain text) or Add web page (paste a URL; the page is fetched safely and its text extracted). Each document shows its chunk count.

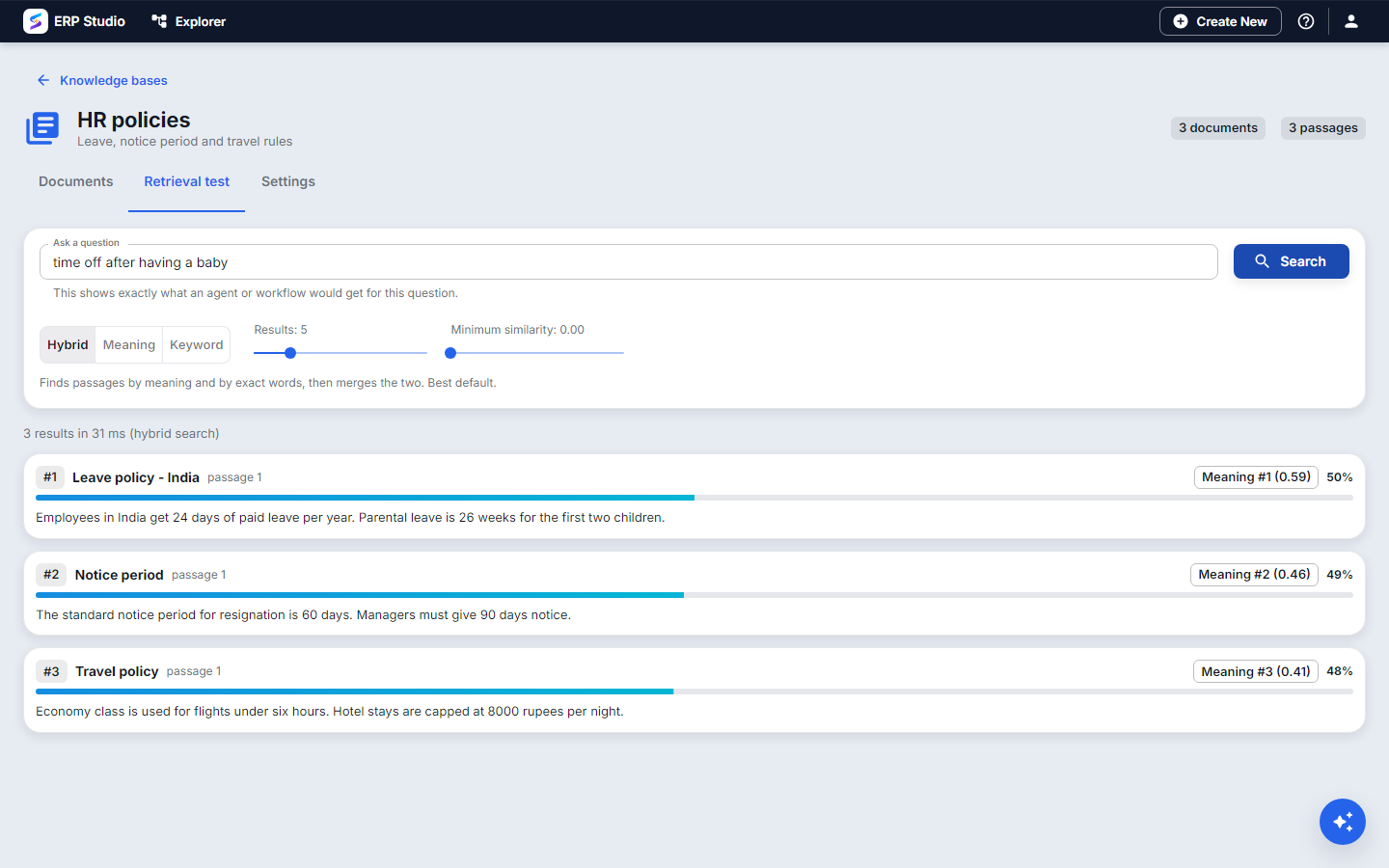

5. Open Retrieval test. Type the question an employee would ask. You see the passages, their scores and which mode found them. Try vector, keyword and hybrid side by side.
6. Change the chunk size or the embedding model? A banner tells you the knowledge base needs a Re-index. Press it; old vectors are replaced.

Tip: split one big policy by country into separate documents named "Leave policy - India", "Leave policy - Germany". The title travels with each passage and shows up in citations.

Developer path

Ship a small knowledge base inside a plugin, metadata/knowledge/hr-policies.json:

{
  "sourceCode": "hr-policies",
  "name": "HR policies",
  "sourceType": "TEXT",
  "documents": [
    { "title": "Leave policy - India", "content": "Employees get 24 days of paid leave per year. Parental leave is 26 weeks for the first two children." }
  ]
}

Validate it, then work with it from the CLI:

erp schema validate spk-assembly/metadata/knowledge/hr-policies.json --schema ai-knowledge-base
erp plugin op ai-kb-list
erp plugin op ai-kb-query --code hr-policies --query "parental leave" --mode HYBRID

Or over HTTP (/api/v1/knowledge/sources):

POST /                                   { "sourceCode":"hr-policies","name":"HR policies","sourceType":"TEXT" }
POST /hr-policies/documents              { "title":"Leave policy - India","content":"..." }
POST /hr-policies/documents/from-url     { "url":"https://intranet.northwind.example/leave","title":"Leave (web)" }
POST /hr-policies/query                  { "query":"parental leave","mode":"HYBRID","topK":5 }
POST /chunk-preview                      { "content":"...","chunkChars":900,"overlapChars":120 }
POST /hr-policies/reindex

The plugin installs the documents on the tenant, embeds them with the tenant's embedding profile, and skips a malformed file with a log line instead of failing the install.

How to verify

1. Retrieval test for "parental leave" returns the India passage first, with a score and its document title.
2. Ask the same in keyword mode with a word that is not in the text; the result is empty. That proves the search is real, not a guess.
3. Vector search for a paraphrase ("time off after a baby") still finds it. That proves the embeddings work.

Common mistakes

• Chunks too small. Answers lose context. Too large and unrelated text dilutes the match. Use the preview.
• Changing the embedding model and not re-indexing. Old and new vectors do not mix; searches will return nothing for the new model until you re-index.
• Expecting per-user document access. Access is per knowledge base today. Put restricted documents in a separate knowledge base and give it only to agents that may use it.
• Uploading a PDF or Word file. Not supported yet; export to text or paste the content.

Not built

PDF and Word ingestion, crawling a whole site, scheduled re-sync from a source, and per-passage access rules.

Next

Prompts - control what the model is told.
